D4Science Infrastructure

First, the basic structure for the users and their main groups. The users right now miss all the POSIX compatibility attributes. They are present on the 'old' ldap server, btw. Example from the old ldap (just the relevant data in both cases):

# id=0000038c
dn: uid=andrea.dellamico,ou=People,o=Users,ou=Organizations,dc=research-infrastructures,dc=eu
uid: andrea.dellamico
uidNumber: 2550
gidNumber: 1000
homeDirectory: /home/andrea.dellamico
objectClass: inetOrgPerson
objectClass: posixAccount

The same user on the new ldap:

# id=0000064c
dn: uid=andrea.dellamico,ou=People,o=Liferay,ou=Organizations,dc=d4science,dc=org
uid: andrea.dellamico

A field missing from both is the one defining the login shell:

loginShell: /bin/bash

In the old ldap the gid number is always 1000, but better if it's unique too. So a group for each user would be needed. To make it POSIX compliant we need something like:

dn: cn=andrea.dellamico,ou=Groups,o=Liferay,ou=Organizations,dc=d4science,dc=org
objectClass: top
objectClass: posixGroup
cn: andrea.dellamico
gidNumber: 1000

The uidNumber and gidNumber fields should start from 1000 and they are 32 bit values, so the upper limit is 4,294,967,296. To find the first available uidNumber, the manage application scans all the posixUser entries but I think that calculating a random integer, trying to use it and incrementing if it's already used should be more efficient.

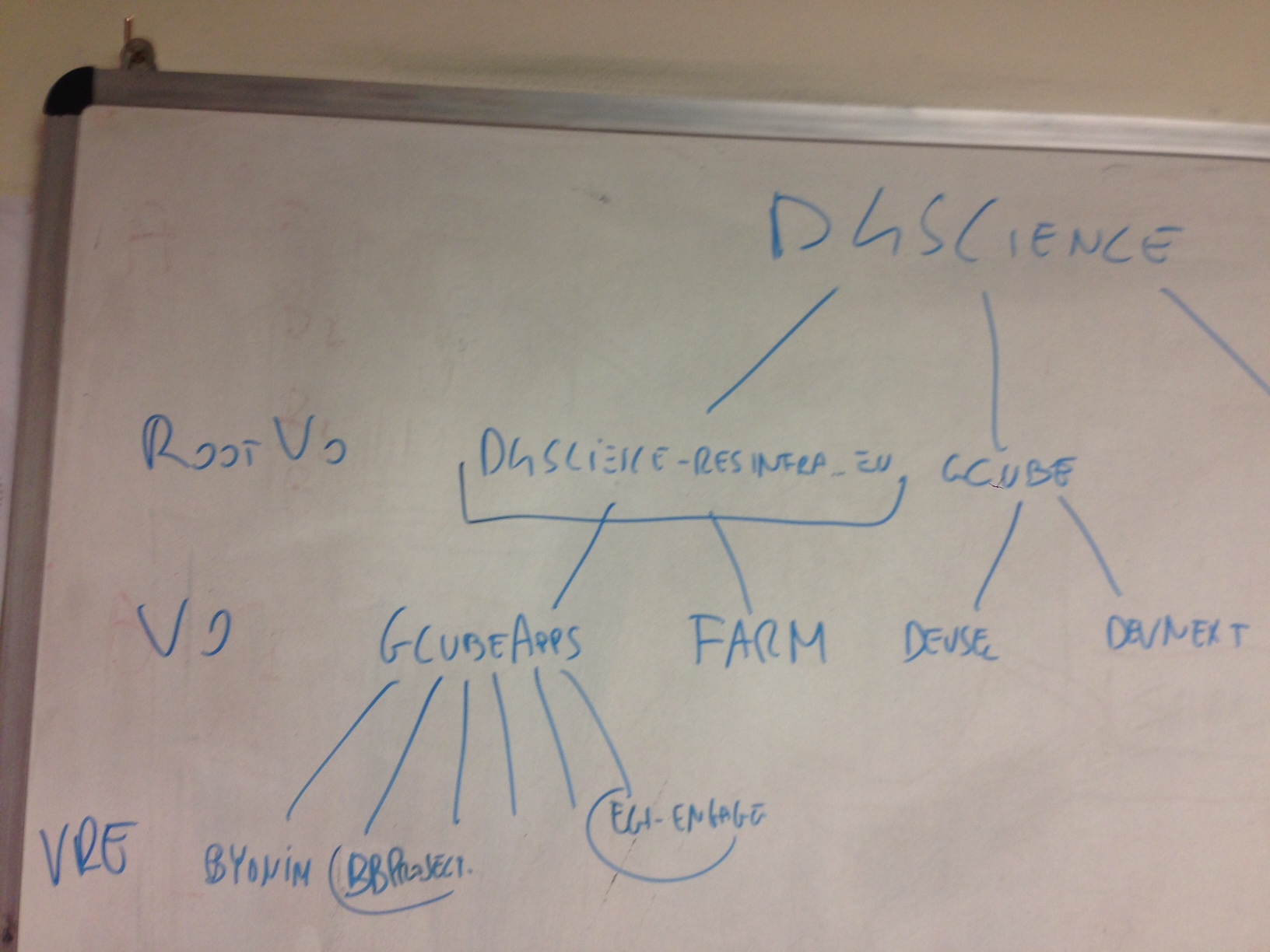

Now about the groups that will reflect the VO/VRE trees. I think that the ldap Organizational Units can be hierarchical but we need to test. We could have:

dn: ou=d4science-research-infrastructures-eu,dc=d4science,dc=org
ou: d4science-research-infrastructures-eu
description: whatever
objectClass: organizationalUnit

then

dn: ou=gcubeapps,ou=d4science-research-infrastructures-eu,dc=d4science,dc=org
ou: gcubeapps
description: whatever again
objectClass: organizationalUnit

The group at last (EDITED 25 Nov '15):

dn: cn=byonim,ou=gcubeapps,ou=d4science-research-infrastructures-eu,dc=d4science,dc=org
objectClass: top
objectClass: posixGroup
objectClass: researchProject
objectclass: groupOfMembers
cn: byonim
gidNumber: XXXX
member: uid=andrea.dellamico,ou=People,o=Liferay,ou=Organizations,dc=d4science,dc=org
(or memberUid: andrea.dellamico)

One member(Uid) line for each group member.

And so on for all the other groups.

The old ldap server uses a researchOrganization object class. For example:

dn: o=CNR,ou=Organizations,dc=research-infrastructures,dc=eu
o: CNR
objectClass: researchOrganization
structuralObjectClass: researchOrganization
entryUUID: c92272ca-611c-102c-90f3-d7e7ca9af3dd
creatorsName: cn=admin,dc=research-infrastructures,dc=eu
createTimestamp: 20080127121151Z
memberURL: ldap:///o=CNR,ou=Organizations,dc=research-infrastructures,dc=eu??sub?(objectClass=researcher)
description: Consiglio Nazionale delle Ricerche

The users are connected with a researchOrganization with the entry:

o: CNR

in their user definition. A research organization can be member of a group

Thanks for the analysis Andrea.
I do agree that randomly generate (and increment in case od collision) a number from 1000 and 4,294,967,296 to assign the unique value is more efficient. So I'm going to implement that strategy.

about the groups that will reflect the VO/VRE trees. You're saying that probably the ldap Organizational Units can be hierarchical but we need to test.

How can we test? Who should test this? I mean should I start exporting users assuming that Organizational Units can be hierarchical and see if it works?

Does a dev portal exist, so that we can try and use ldap-liferay-d.d4science.org?

The organizational units and the VRE related groups should be created first, btw

@massimiliano.assante@isti.cnr.it you can announce the possible unavailability due to tests of one of two dev portals (dev or dev3) using gcube VRE https://services.d4science.org/group/gcube

@luca.frosini@isti.cnr.it dev and dev3 are development portals, therefore they are subject to restarts and no SLA is applied.

@massimiliano.assante@isti.cnr.it ok as you wish

My mistake: the group example, done right:

dn: cn=byonim,ou=gcubeapps,ou=d4science-research-infrastructures-eu,dc=d4science,dc=org
objectClass: top
objectClass: posixGroup
objectClass: researchProject
objectclass: groupOfMembers
cn: byonim
gidNumber: XXXX
member: uid=andrea.dellamico,ou=People,o=Liferay,ou=Organizations,dc=d4science,dc=org
(or memberUid: andrea.dellamico)

Massimiliano Assante wrote:

Some problem with the creation of the group (as in the example above)

When trying to add these 2 ObjectClasses:

objectClass: researchProject
objectclass: groupOfMembers

I verified that those classes are part of the esearchInfrastructures.schema, a custom schema added to the old ldap server.

the exceptions is : [LDAP: error code 21 - objectClass: value #2 invalid per syntax]

When trying to add member attribute instead another exception: the exceptions is:

javax.naming.directory.SchemaViolationException: [LDAP: error code 65 - attribute 'member' not allowed]; remaining name 'cn=AquaMaps,ou=FARM,ou=d4science-research-infrastructures-eu,dc=d4science,dc=org'

I checked the Schema and 'member' should be 'memberUid' but even if I do so I don't get How to add more than one user to the group.

I think that its because the groups are posixGroups. And I confirm that memberUid takes the username as the only parameter.

Massimiliano Assante wrote:

The script for exporting groups is in place on dev.d4science.org (exports on LDAP-d) see attached screenshot. @andrea.dellamico@isti.cnr.it could you check is this is what is expected?

It seems correct to me.

And the uidNumber and posix attributes for the users, or they are already there?

NO they are not.
Together with Andrea we agreed to change the user Liferay in the user dn into D4Science. This implies to change the Redmine LDAP Configuration accordingly (I'll open a ticket for this right away)

e.g.
from:
dn: uid=andrea.dellamico,ou=People,o=Liferay,ou=Organizations,dc=d4science,dc=org

in:
dn: uid=andrea.dellamico,ou=People,o=D4Science,ou=Organizations,dc=d4science,dc=org

Not strictly related to this ticket related to Export ....
We need also input from Ldap to Liferay. Is there another ticket modeling this activity?

A question related to this ticket. If we connect all the portals we manage to the same LDAP we have the merge of the users belonging to the same group, correct?

Pasquale Pagano wrote:

Not strictly related to this ticket related to Export ....
We need also input from Ldap to Liferay. Is there another ticket modeling this activity?

No, there's no ticket for that.

A question related to this ticket. If we connect all the portals we manage to the same LDAP we have the merge of the users belonging to the same group, correct?

actually this script run on all the portals, and if it merges the users already.

sorry, ambiguous reply. this script is meant to run on all the portals, when it does it is constructed to merge the users.
